Learning to compute a product

Unlike the communication channel and the element-wise square, the product is a nonlinear function on multiple inputs. This represents a difficult case for learning rules that aim to generalize a function given many input-output example pairs. However, using the same type of network structure as in the communication channel and square cases, we can learn to compute the product of two dimensions with the nengo.PES learning rule.

The product is a trickier function to learn than the communication channel and the square. We will also try the nengo.RLS learning rule and see how PES and RLS compare in terms of learning the product of two dimensions.

[1]:
import numpy as np
import matplotlib.pyplot as plt

%matplotlib inline

import nengo
from nengo.processes import WhiteSignal

Create the model

Like previous examples, the network consists of pre, post, and error ensembles. We’ll use two-dimensional white noise input and attempt to learn the product using the actual product to compute the error signal.

[2]:
model = nengo.Network()
with model:
    # -- input and pre popluation
    inp = nengo.Node(WhiteSignal(60, high=5), size_out=2)
    pre = nengo.Ensemble(120, dimensions=2)
    nengo.Connection(inp, pre)

    # -- post populations
    post_pes = nengo.Ensemble(60, dimensions=1)
    post_rls = nengo.Ensemble(60, dimensions=1)

    # -- reference population, containing the actual product
    product = nengo.Ensemble(60, dimensions=1)
    nengo.Connection(inp, product, function=lambda x: x[0] * x[1], synapse=None)

    # -- error populations
    error_pes = nengo.Ensemble(60, dimensions=1)
    nengo.Connection(post_pes, error_pes)
    nengo.Connection(product, error_pes, transform=-1)
    error_rls = nengo.Ensemble(60, dimensions=1)
    nengo.Connection(post_rls, error_rls)
    nengo.Connection(product, error_rls, transform=-1)

    # -- learning connections
    conn_pes = nengo.Connection(
        pre,
        post_pes,
        function=lambda x: np.random.random(1),
        learning_rule_type=nengo.PES(),
    )
    nengo.Connection(error_pes, conn_pes.learning_rule)
    conn_rls = nengo.Connection(
        pre,
        post_rls,
        function=lambda x: np.random.random(1),
        learning_rule_type=nengo.RLS(),
    )
    nengo.Connection(error_rls, conn_rls.learning_rule)

    # -- inhibit errors after 40 seconds
    inhib = nengo.Node(lambda t: 2.0 if t > 40.0 else 0.0)
    nengo.Connection(inhib, error_pes.neurons, transform=[[-1]] * error_pes.n_neurons)
    nengo.Connection(inhib, error_rls.neurons, transform=[[-1]] * error_rls.n_neurons)

    # -- probes
    product_p = nengo.Probe(product, synapse=0.01)
    pre_p = nengo.Probe(pre, synapse=0.01)
    post_pes_p = nengo.Probe(post_pes, synapse=0.01)
    error_pes_p = nengo.Probe(error_pes, synapse=0.03)
    post_rls_p = nengo.Probe(post_rls, synapse=0.01)
    error_rls_p = nengo.Probe(error_rls, synapse=0.03)

with nengo.Simulator(model) as sim:
    sim.run(60)
[3]:
def plots(start_ix=None, end_ix=None):
    sl = slice(start_ix, end_ix)
    t = sim.trange()[sl]
    plt.figure(figsize=(14, 12))
    plt.suptitle("")
    plt.subplot(4, 1, 1)
    plt.plot(t, sim.data[pre_p][sl], c="b")
    plt.legend(("Pre decoding",), loc="best")
    plt.subplot(4, 1, 2)
    plt.plot(t, sim.data[product_p][sl], c="k", label="Actual product")
    plt.plot(t, sim.data[post_pes_p][sl], c="r", label="Post decoding (PES)")
    plt.legend(loc="best")
    plt.subplot(4, 1, 3)
    plt.plot(t, sim.data[product_p][sl], c="k", label="Actual product")
    plt.plot(t, sim.data[post_rls_p][sl], c="r", label="Post decoding (RLS)")
    plt.legend(loc="best")
    plt.subplot(4, 1, 4)
    plt.plot(t, sim.data[error_pes_p][sl], c="b", label="Error (PES)")
    plt.plot(t, sim.data[error_rls_p][sl], c="r", label="Error (RLS)")
    plt.legend(loc="best")
    plt.ylim(-1, 1)


plots()

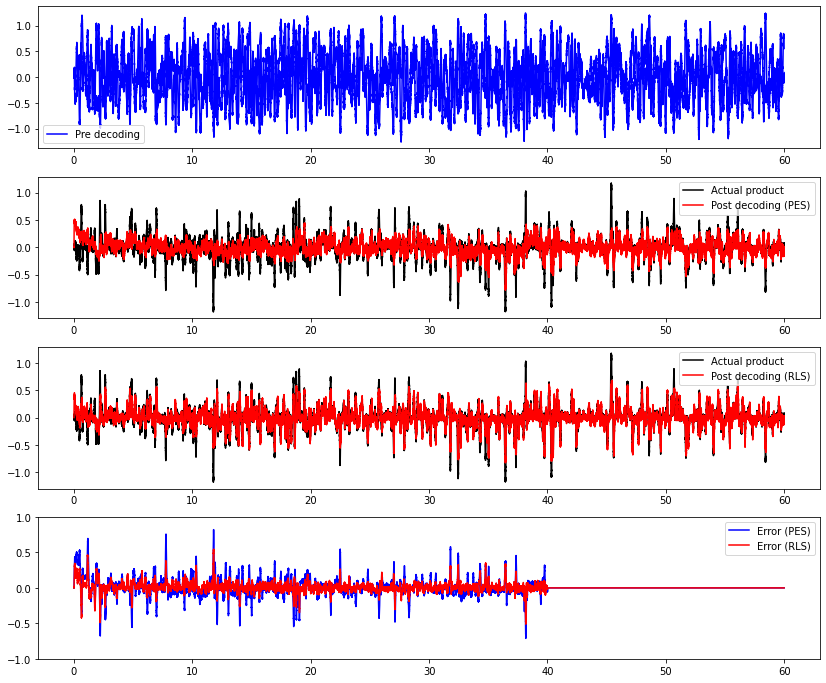

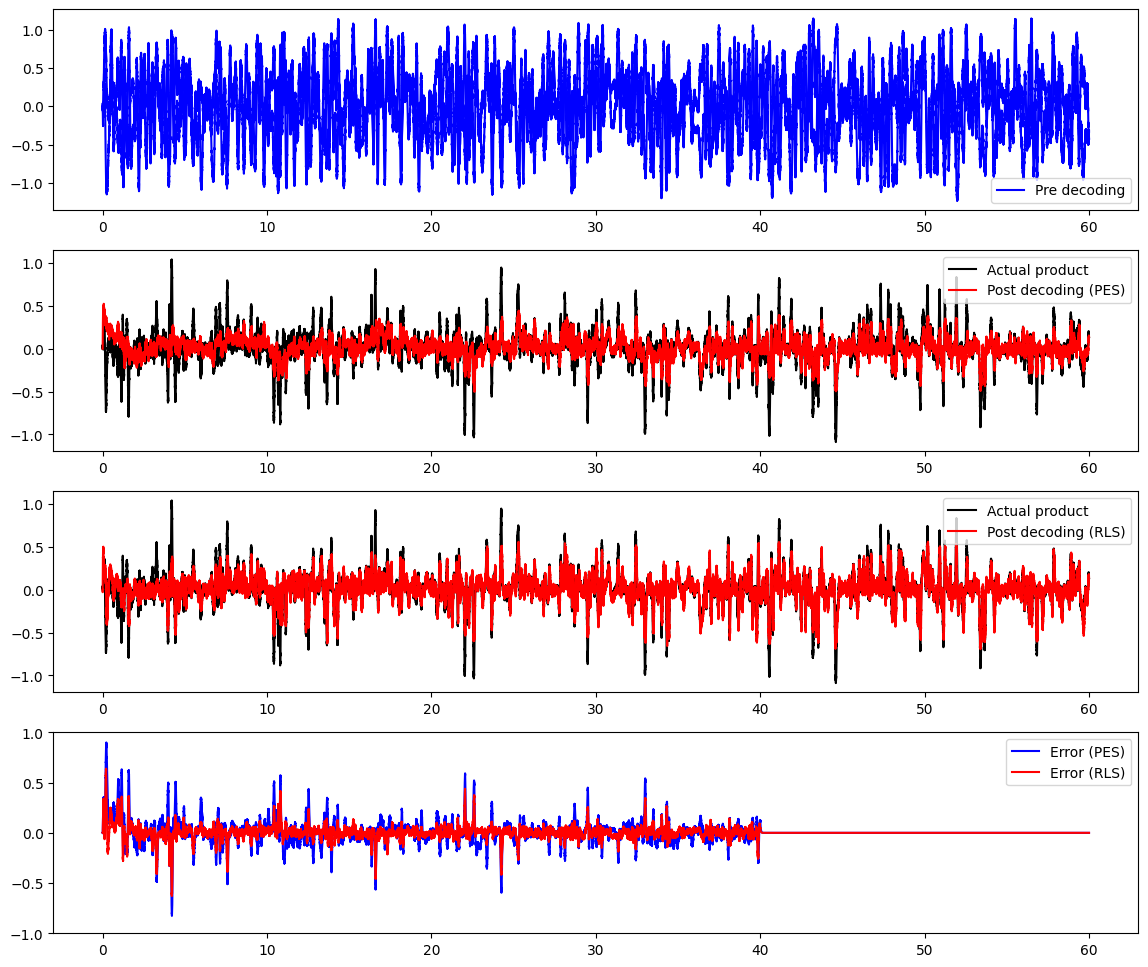

../../_images/examples_learning_learn-product_4_0.png

Examine the initial output

Let’s zoom in on the network at the beginning:

[4]:
plots(end_ix=2000)

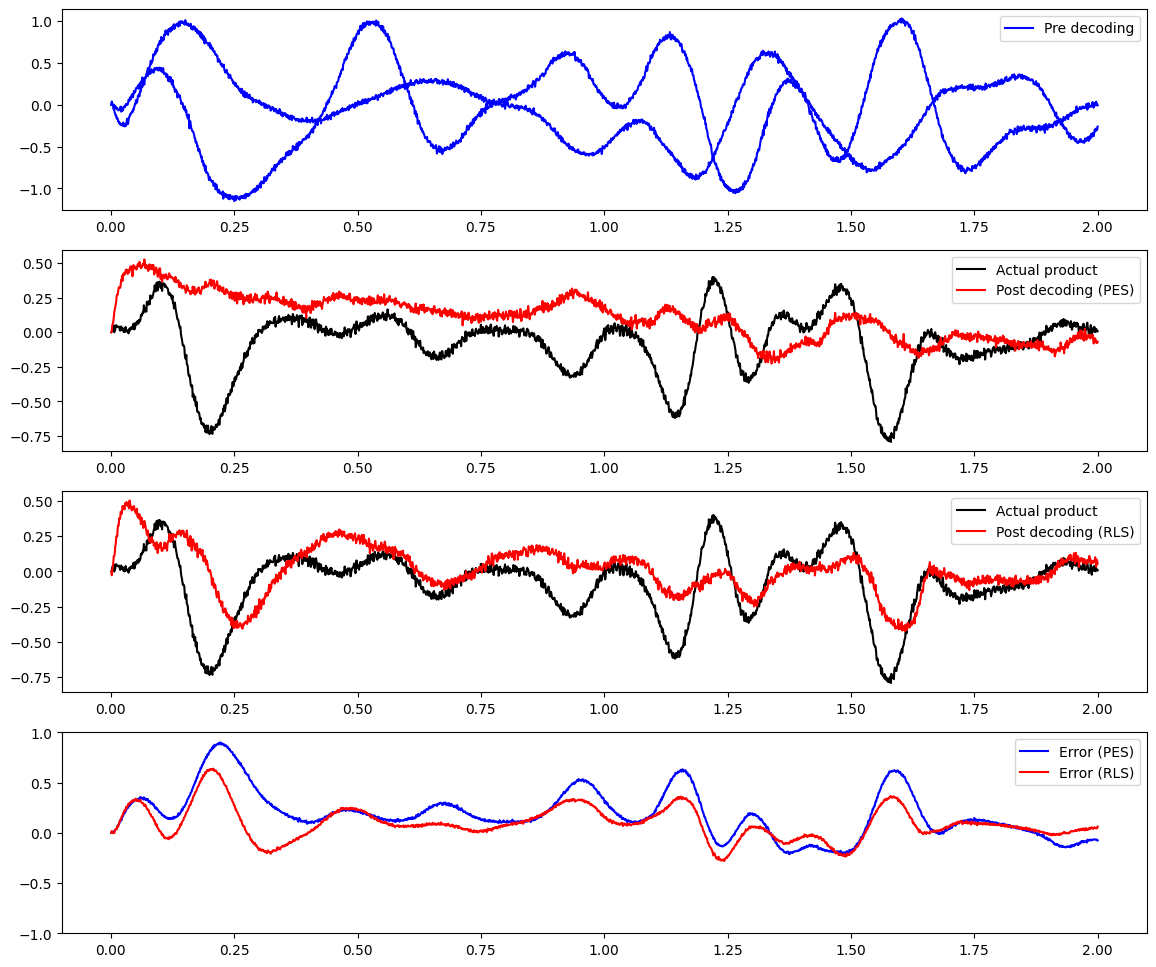

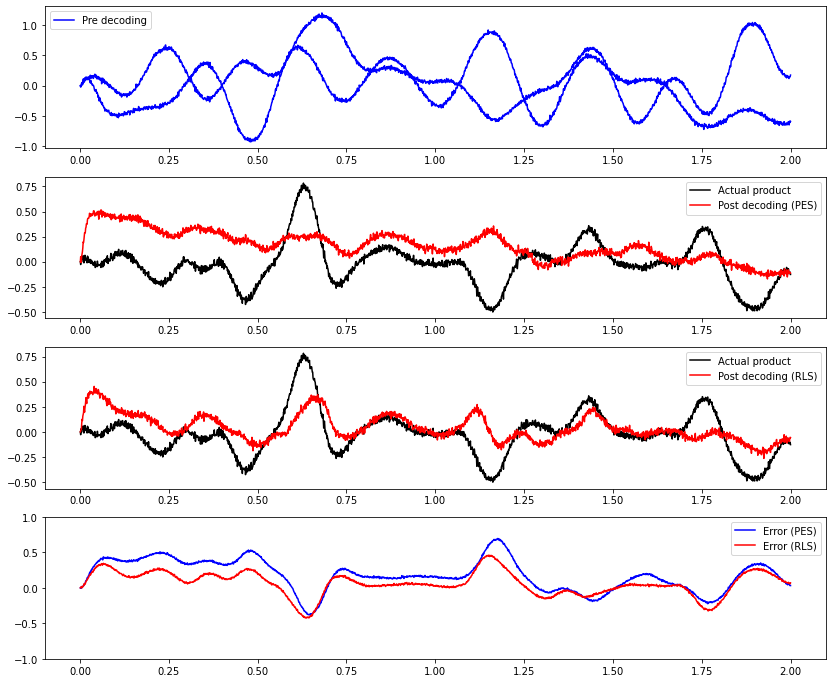

../../_images/examples_learning_learn-product_6_0.png

The above plot shows that when the network is initialized, it is not able to compute the product. The error is quite large.

Examine the final output

After the network has run for a while, and learning has occurred, the output is quite different:

[5]:
plots(start_ix=38000, end_ix=42000)

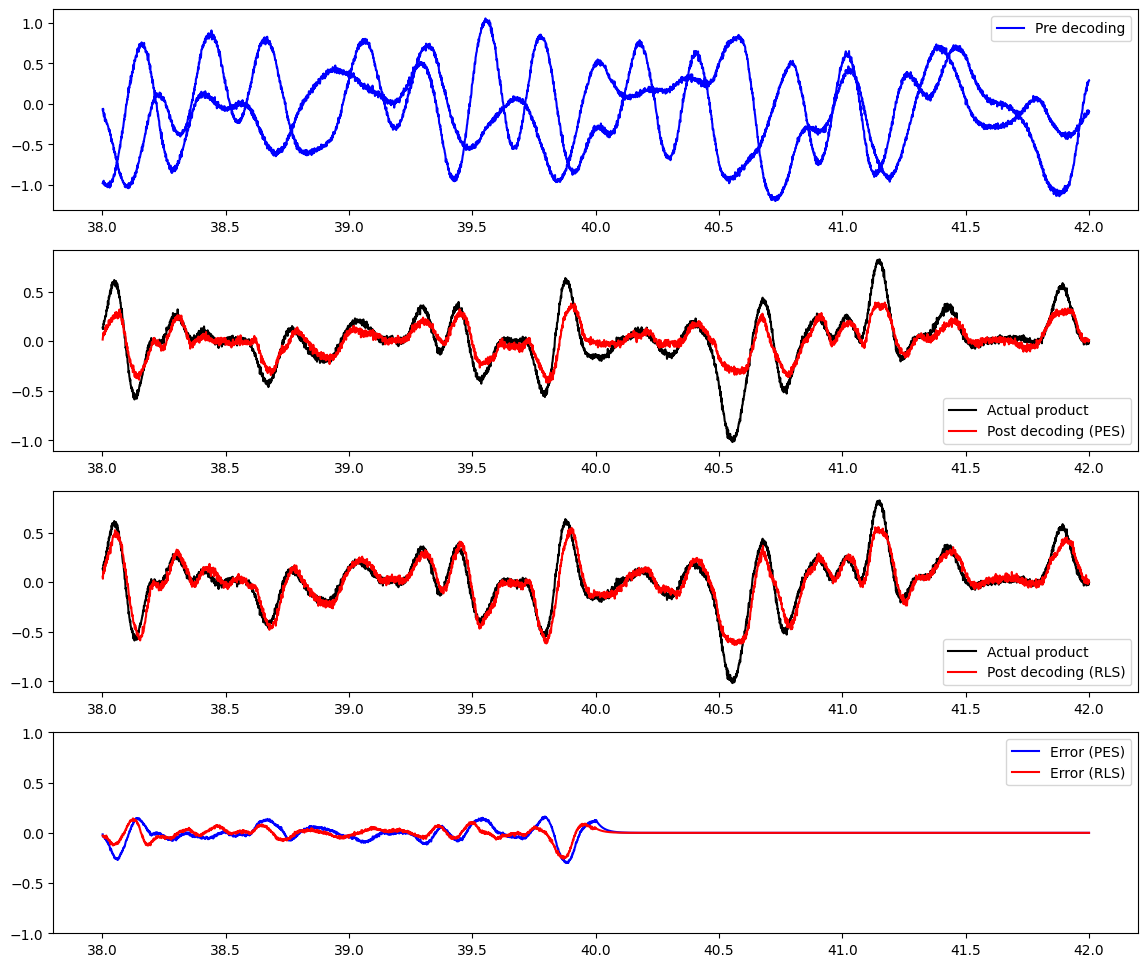

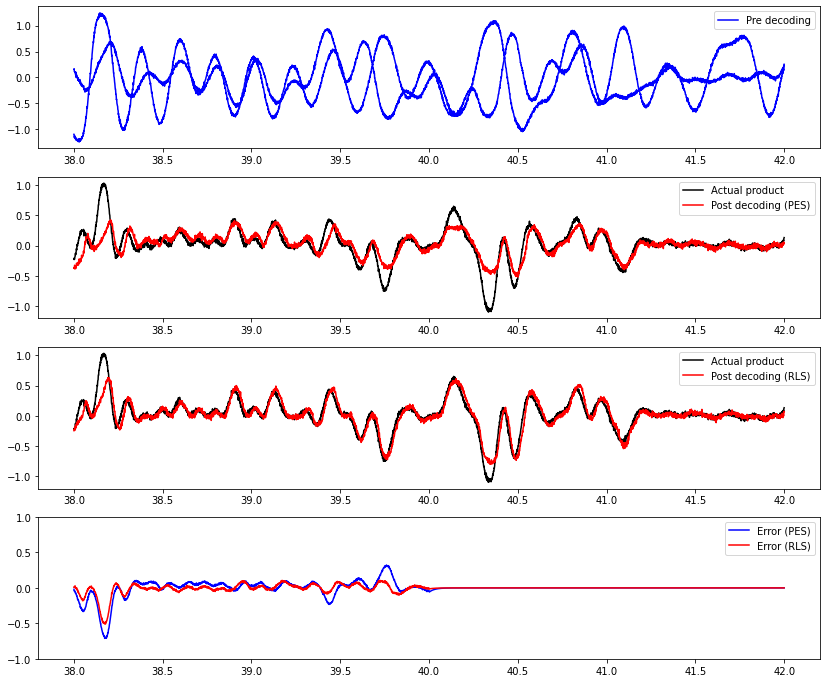

../../_images/examples_learning_learn-product_9_0.png

You can see that it has learned a decent approximation of the product, but it’s not perfect – typically, it’s not as good as the offline optimization. The reason for this is that we’ve given it white noise input, which has a mean of 0; since this happens in both dimensions, we’ll see a lot of examples of inputs and outputs near 0. In other words, we’ve oversampled a certain part of the vector space, and overlearned decoders that do well in that part of the space. If we want to do better in other parts of the space, we would need to construct an input signal that evenly samples the space.
