The Lorenz chaotic attractor

This example shows the construction of a classic chaotic dynamical system: the Lorenz “butterfly” attractor. The equations are:

\[\begin{split}\dot{x}_0 = \sigma(x_1 - x_0) \\\ \dot{x}_1 = x_0 (\rho - x_2) - x_1 \\\ \dot{x}_2 = x_0 x_1 - \beta x_2\end{split}\]

Since \(x_2\) is centered around approximately \(\rho\), and since NEF ensembles are usually optimized to represent values within a certain radius of the origin, we substitute \(x_2' = x_2 - \rho\), giving these equations:

\[\begin{split}\dot{x}_0 = \sigma(x_1 - x_0) \\\ \dot{x}_1 = - x_0 x_2' - x_1 \\\ \dot{x}_2' = x_0 x_1 - \beta (x_2' + \rho) - \rho\end{split}\]

For more information, see http://compneuro.uwaterloo.ca/publications/eliasmith2005b.html “Chris Eliasmith. A unified approach to building and controlling spiking attractor networks. Neural computation, 7(6):1276-1314, 2005.”

[1]:
%matplotlib inline
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

import nengo
[2]:
tau = 0.1
sigma = 10
beta = 8.0 / 3
rho = 28


def feedback(x):
    dx0 = -sigma * x[0] + sigma * x[1]
    dx1 = -x[0] * x[2] - x[1]
    dx2 = x[0] * x[1] - beta * (x[2] + rho) - rho

    return [
        dx0 * tau + x[0],
        dx1 * tau + x[1],
        dx2 * tau + x[2],
    ]


model = nengo.Network(label="Lorenz attractor")
with model:
    state = nengo.Ensemble(2000, 3, radius=60)
    nengo.Connection(state, state, function=feedback, synapse=tau)
    state_probe = nengo.Probe(state, synapse=tau)

with nengo.Simulator(model) as sim:
    sim.run(10)
[3]:
ax = plt.figure().add_subplot(111, projection=Axes3D.name)
ax.plot(*sim.data[state_probe].T)

plt.figure()
plt.plot(sim.trange(), sim.data[state_probe])
[3]:
[<matplotlib.lines.Line2D at 0x7fa8a860edd8>,
 <matplotlib.lines.Line2D at 0x7fa8a860ef28>,
 <matplotlib.lines.Line2D at 0x7fa8a85fff28>]
../../_images/examples_dynamics_lorenz-attractor_3_1.png

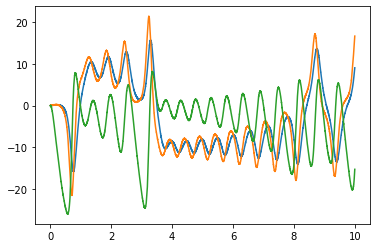

../../_images/examples_dynamics_lorenz-attractor_3_2.png
