This demo shows you how to construct and manipulate a single leaky integrate-and-fire (LIF) neuron. The LIF neuron is a simple, standard neuron model, and here it resides inside a neural ‘population’, even though there is only one neuron.
In [1]:
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
import nengo
In [2]:
from nengo.dists import Uniform
model = nengo.Network(label='A Single Neuron')
with model:
neuron = nengo.Ensemble(
1,
dimensions=1, # Represent a scalar
intercepts=Uniform(-.5, -.5), # Set intercept to 0.5
max_rates=Uniform(100, 100), # Set the maximum firing rate of the neuron to 100hz
encoders=[[1]]) # Sets the neurons firing rate to increase for positive input
Create an input node generating a cosine wave.
In [3]:
with model:
cos = nengo.Node(lambda t: np.cos(8 * t))
In [4]:
with model:
# Connect the input signal to the neuron
nengo.Connection(cos, neuron)
Anything that is probed will collect the data it produces over time, allowing us to analyze and visualize it later.
In [5]:
with model:
cos_probe = nengo.Probe(cos) # The original input
spikes = nengo.Probe(neuron.neurons) # The raw spikes from the neuron
voltage = nengo.Probe(neuron.neurons,'voltage') # Subthreshold soma voltage of the neuron
filtered = nengo.Probe(neuron, synapse=0.01) # Spikes filtered by a 10ms post-synaptic filter
In [6]:
with nengo.Simulator(model) as sim: # Create the simulator
sim.run(1) # Run it for 1 second
In [7]:
# Plot the decoded output of the ensemble
plt.figure()
plt.plot(sim.trange(), sim.data[filtered])
plt.plot(sim.trange(), sim.data[cos_probe])
plt.xlim(0, 1)
# Plot the spiking output of the ensemble
from nengo.utils.matplotlib import rasterplot
plt.figure(figsize=(10, 8))
plt.subplot(221)
rasterplot(sim.trange(), sim.data[spikes])
plt.ylabel("Neuron")
plt.xlim(0, 1)
# Plot the soma voltages of the neurons
plt.subplot(222)
plt.plot(sim.trange(), sim.data[voltage][:, 0], 'r')
plt.xlim(0, 1);

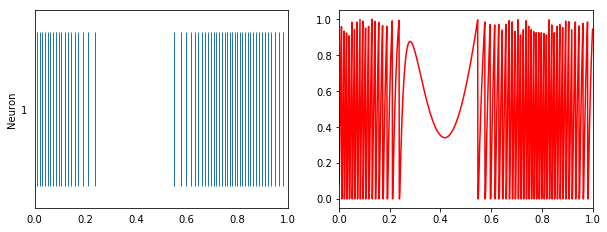

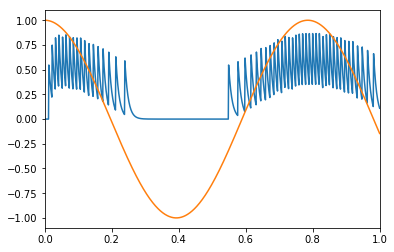

The top graph shows that the input signal in green and the filtered output spikes from the single neuron population in blue. The spikes (that are filtered) from the neuron are shown in the bottom graph on the left. On the right is the subthreshold voltages for the neuron.
