Optimizing Existing Networks

Nengo DL is not confined to opimizing custom made networks, it can also be used to make existing networks better, or achieve the same result with fewer neurons. What this example will show is how to train a circular convolution network.

Circular convolution is a key operation used to process semantic pointers. By optimizing this smaller network, larger more complex networks that utilize circular convolution can benefit.

%matplotlib inline
import numpy as np
import matplotlib.pyplot as plt
import nengo
import nengo_dl
from nengo.spa import Vocabulary
import tensorflow as tf

To properly train the network, we generate novel training data by randomly generating semantic pointers.

def gen_pointers(n_inputs, dims, rng):
    vocabulary = Vocabulary(dimensions=dims, rng=rng, max_similarity=1)
    for v in range(n_inputs):
        # keys start with A, second element starts with B, third starts with C
        conv_key = f"C{v}"
        point_key_1 = f"A{v}"
        pointer_1 = vocabulary.create_pointer()
        point_key_2 = f"B{v}"
        pointer_2 = vocabulary.create_pointer()
        vocabulary.add(point_key_1, pointer_1)
        vocabulary.add(point_key_2, pointer_2)
        vocabulary.add(conv_key, vocabulary.parse(point_key_2 + "*" + point_key_1))

    A = np.asarray([vocabulary[f"A{i}"].v for i in range(n_inputs)])[:, None, :]
    B = np.asarray([vocabulary[f"B{i}"].v for i in range(n_inputs)])[:, None, :]
    C = np.asarray([vocabulary[f"C{i}"].v for i in range(n_inputs)])[:, None, :]
    return A, B, C, vocabulary


rng = np.random.RandomState(0)
dimensions = 50
test_a, test_b, test_c, vocab = gen_pointers(10, dimensions, rng)

We want our optimized network to work with spiking LIF neurons, so we will use SoftLIFRate neurons (a differentiable approximation of LIF neurons) to train the network.

We’ll start with the nengo.networks.CircularConvolution network, where all the parameters are initialized using the standard Nengo methods, and then further optimize those parameters using deep learning training methods.

In this example only 5 neurons are used per dimension for the circular convolution. This is fewer than would typically be used in a Nengo model, but the enhanced performance enabled by the training process will allow the network to function well with this restricted number of neurons.

with nengo.Network(seed=rng.randint(1e6)) as net:
    net.config[nengo.Ensemble].neuron_type = nengo_dl.SoftLIFRate(sigma=0.1)
    net.config[nengo.Connection].synapse = None

    # Get the raw vectors for the pointers using `vocab['A'].v`
    a = nengo.Node(output=vocab["A0"].v)
    b = nengo.Node(output=vocab["B0"].v)

    # Make the circular convolution network with 5 neurons per dimension
    cconv = nengo.networks.CircularConvolution(5, dimensions=dimensions)

    # Connect the input nodes to the input slots `A` and `B` on the network
    nengo.Connection(a, cconv.input_a)
    nengo.Connection(b, cconv.input_b)

    # Probe the output
    out = nengo.Probe(cconv.output)
    out_filtered = nengo.Probe(cconv.output, synapse=0.01)

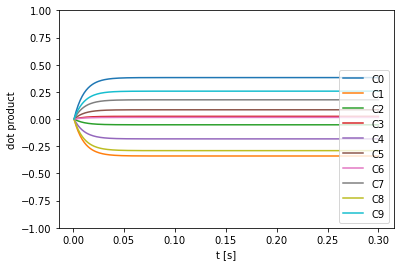

We now run the network in its default state to get an idea of the baseline performance. Ideally the output would be clearly C0, the result of the convolution between A0 and B0, but we can see that it is poorly differentiated.

with nengo.Simulator(net) as sim:
    sim.run(0.3)
plt.figure()
output_vocab = vocab.create_subset([f"C{i}" for i in range(10)])
plt.plot(sim.trange(), nengo.spa.similarity(sim.data[out_filtered], output_vocab))
plt.legend(output_vocab.keys, loc=4)
plt.ylim([-1, 1])
plt.xlabel("t [s]")
plt.ylabel("dot product")

0%



/home/tbekolay/Code/nengo-dl/nengo_dl/neurons.py:77: RuntimeWarning: divide by zero encountered in true_divide
  q = np.where(j_valid, np.log1p(1 / z), -js - np.log(self.sigma))
/home/tbekolay/Code/nengo-dl/nengo_dl/neurons.py:77: RuntimeWarning: overflow encountered in true_divide
  q = np.where(j_valid, np.log1p(1 / z), -js - np.log(self.sigma))

0%



Text(0, 0.5, 'dot product')

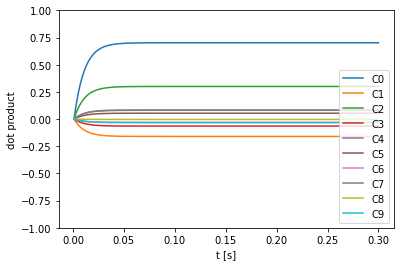

Now we can optimize our network, by showing it random input pointers and training it to output their circular convolution.
